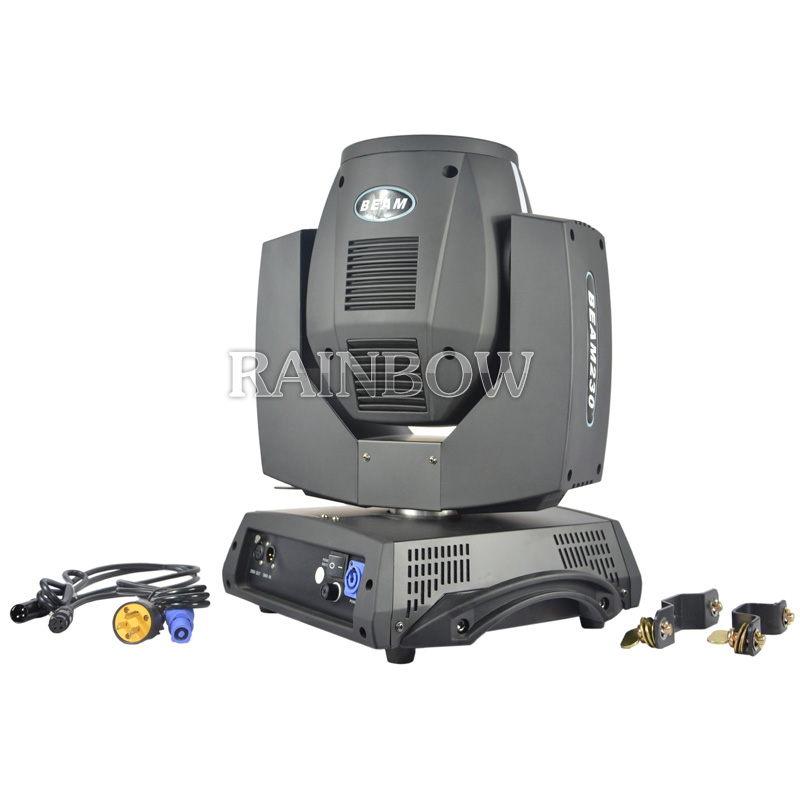

230W Sharpy 7R Beam Moving Head Light
¡ôLamp Source
Osram Siruis 230W
2 type for option:Yodn MSD 230W 7R
Color temperature: 8,500K
Acerage Life: 2,000Hrs
¡ôElectrical
Input Voltage: AC90-240V 50/60HZ
Power Consumption: 250W
¡ôControl
Display: 4-button LED digital display or LCD display selectable, can be turned 180¡ã&record the using time
Control Protocol: DMX512,automatic and master/slave mode
Channel: 16/20CH
¡ôOptical System
YL(YiLong) 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: Rotating 8-facet prism
Frost filter
Beam angle:0-3.8 degree
¡ôMovement
Pan:540¡ã
TilL:270¡ã
Pan/Tilt Resolution: 16bit
Gobos&Colors
Rotating Gobos: 1 gobos wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
¡ôPhysical
Housing: Flame-retardant plastic
Housing Color: Black or White selectable
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan and aluminum radiator
¡ôCertificate&Satety
Certificate: CE
Working environment: Indoor
Operation temp:-20~40¡æ
¡ôPacking
Accessories: Standard power cable, signal cable and omega
Optional safety cable and clamps
Product Size: 330*390*490mm
Packing Size: 420*480*580mm
N.W.:17.00KGs
G W.:19.5KGs
Packing: Carton or flight case
|
