Feature:

1.XLR3 plug 2：Input voltage 3：ID indicator 4：ID button 5：RF antenna
Product Feature:

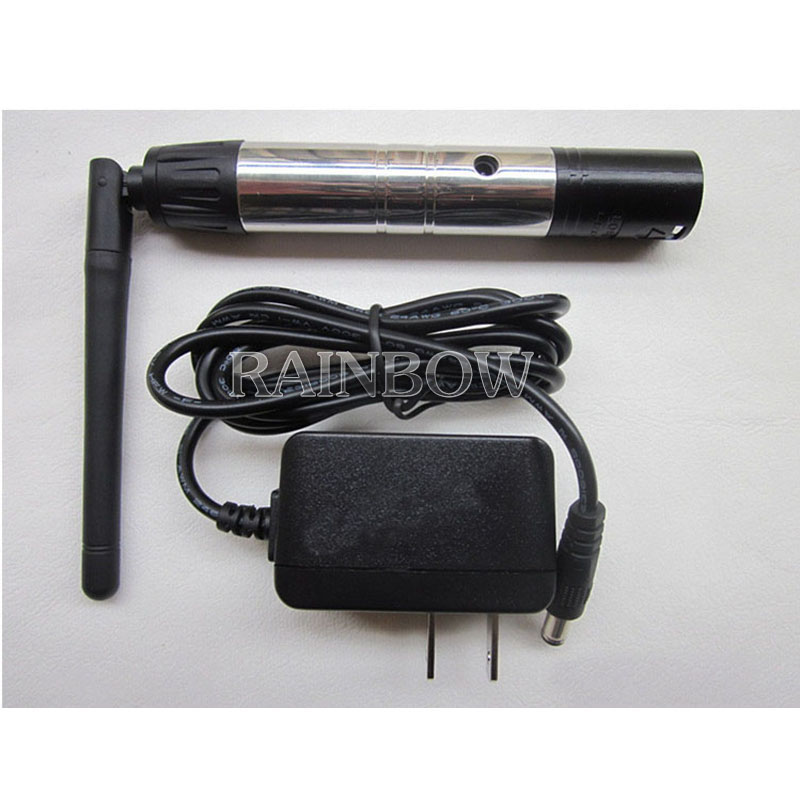

1. Product name: 2.4G wireless DMX512 R/T
2. Tricolor LED displaying
3. 126 channels jumping frenquecy automaticly，high anti-jamming ability. to ensure works reliability
4. 7 groups ID code settable，User can use 7 groups individual wireless net without any interfere each other in the same place...
5. Input voltage：5VDC 500mA MIN
6. Communication distance：400M（visible distance , it has some different base on environment）
7. Work frequency section：2.4G ISM,126 channels.frequency section
8. Max transmitting power rate：20dBm
9. Receiver sensitive：-94dBm
10.Signal port：3pin female plug
